shonMesh
Meshing
shonMesh delivers high-quality mesh generation for both triangular surface meshes and tetrahedral volume meshes. Its intelligent sizing control lets you define mesh resolution globally or refine it locally where needed, ensuring optimal detail without unnecessary computational overhead. Built-in mesh quality assessment and visualization tools provide immediate feedback on your mesh integrity, while automated mesh repairing capabilities fix common geometric issues before they impact your simulation. This streamlined workflow ensures you start every analysis with a reliable, optimized mesh that balances accuracy and performance.
Geometry Handling

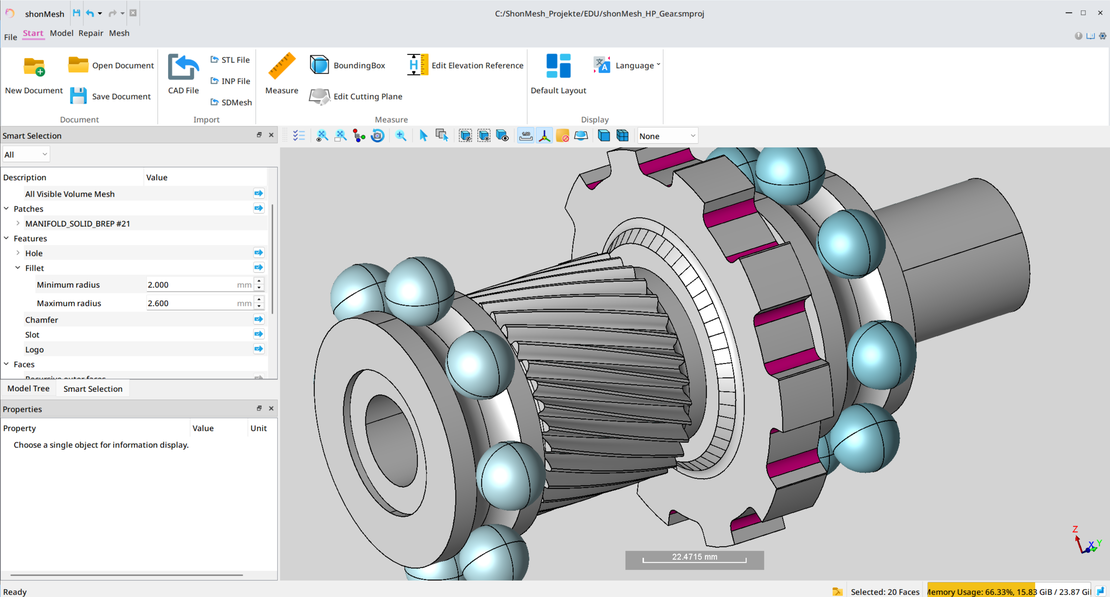

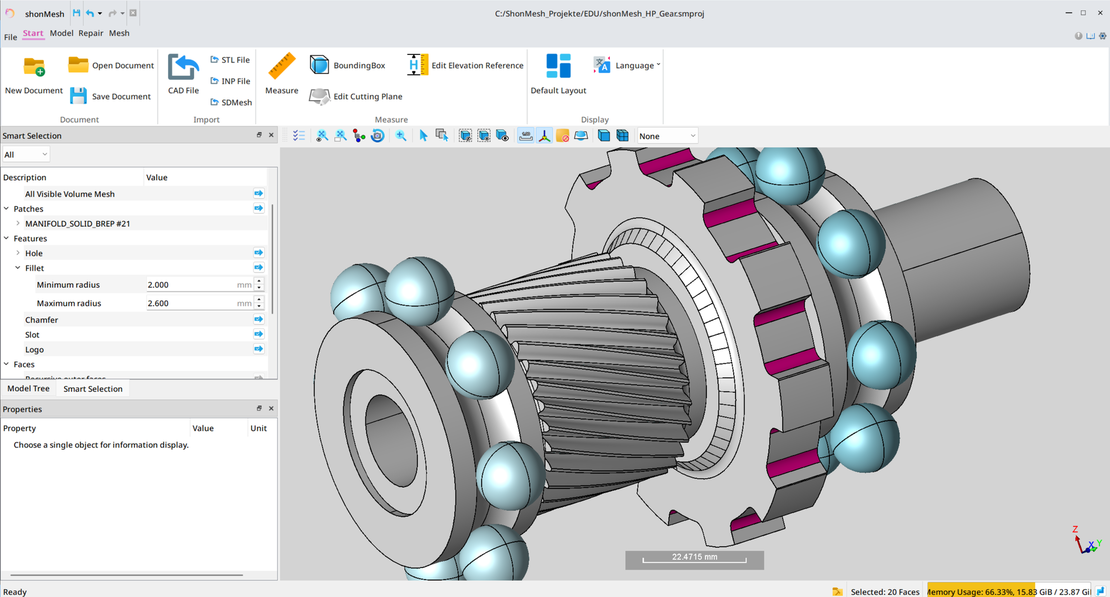

shonMesh streamlines CAD geometry preparation with intelligent automation. It detects and heals common geometric issues such as intersections and penetrations, reducing manual cleanup time. The Smart Selection tool recognizes similar faces and features, allowing you to apply settings across multiple regions with a single click. Semi-automatic defeaturing efficiently removes chamfers, fillets, and holes, reducing mesh complexity without sacrificing accuracy. Define boundary patches directly on your geometry to organize your simulation setup, and use the volume extraction tool to automatically derive fluid domains from solid geometries. This comprehensive geometry handling ensures your models are simulation-ready with minimal manual intervention.
Automation

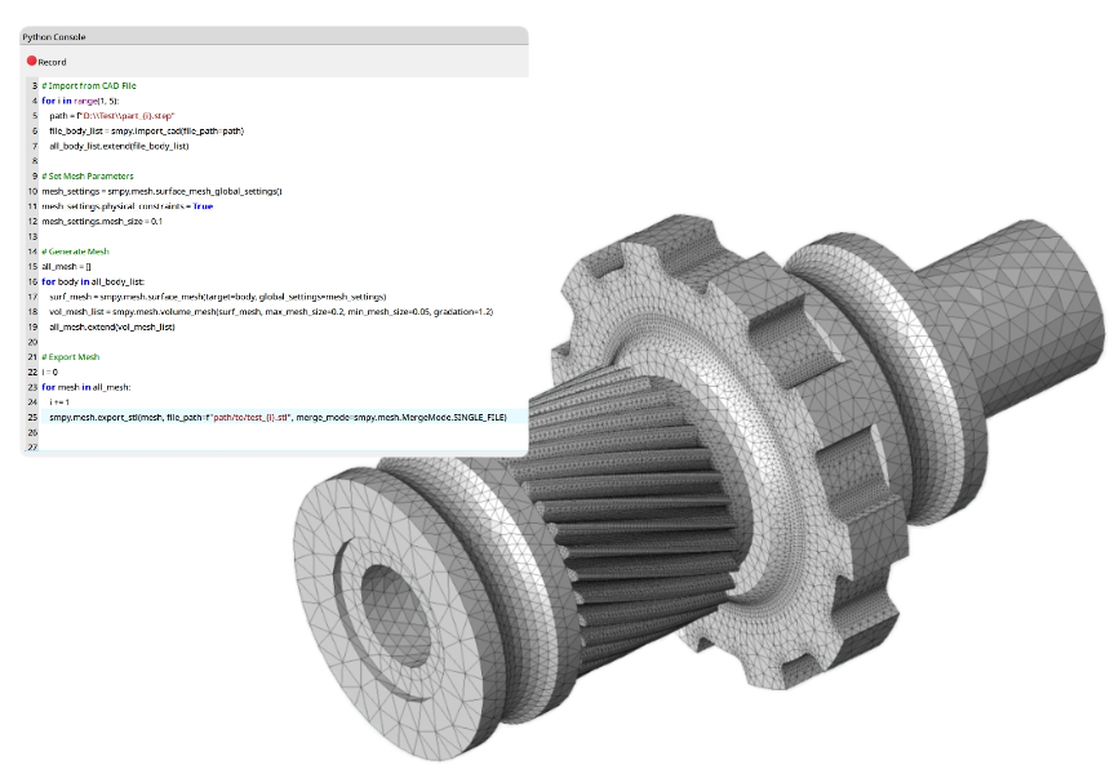

Repetitive operations like meshing can be fully automated through shonMesh’s integrated Python interface. The workflow is straightforward: perform your operations in the GUI while the built-in recorder captures every step as Python code. Once recorded, you can adjust and generalize the script to handle variations in geometry or parameters. Execute the finalized script to process multiple geometries automatically, turning exhausting repetitive manual work into a single command. This capability is particularly valuable for batch processing, parametric studies, or standardized meshing procedures that need to be applied consistently.
Recommended Requirements
Meeting the requirements will ensure the best experience with our products
- Operating System : Windows 10/11, Ubuntu 20.04/22.04
- CPU : Intel Core i7-12700 / AMD Ryzen7 5800x
- GPU : Nvidia 10 Series / AMD 5000 Series Discrete GPU
- RAM : 8G+
- Disk space : 40Gb
Frequently Asked Questions
shonMesh is a mesh pre-processing software designed to prepare, clean, and mesh complex geometries efficiently. It enables users to transform raw CAD data into high-quality meshes ready for simulation.
shonMesh offers comprehensive geometry editing and cleanup, a robust meshing engine for generating triangular surface and tetrahedral volume meshes, and fast export to standard mesh formats as well as the shonX product family.
shonMesh includes a powerful set of geometry tools such as Boolean operations, transformations, and repair functions. Key simplification capabilities include automatic feature removal (defeaturing) of elements like holes and fillets, midsurface extraction for thin structures such as metal sheets, and face merging to reduce model complexity. Additional mesh cleanup tools ensure mesh integrity by resolving issues like duplicated or non-manifold faces.
shonMesh integrates a built-in Python interface and console to automate and customize workflows. Users can execute scripts, record interactive GUI actions, and convert them directly into Python code for reuse. This makes it easy to automate repetitive tasks, streamline batch processing, and significantly increase overall workflow efficiency.
